Using Spectrum Profile

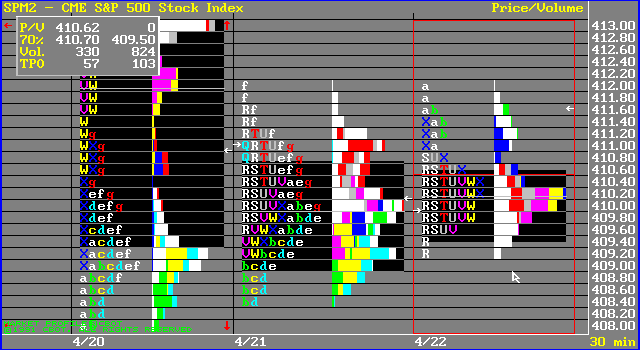

The Spectrum Profile is a histogram that shows the percentage of ticks at each price within the trading range of the instrument. A horizontal bar is drawn at each price level. The total length of this bar reflects the total tick volume at a price. Each bar is further divided into colored bars (Spectra) reflecting what subset of the tick volume occurred during what part of the day. Spectra can represent any amount of time, but the default is 30 minutes. Spectrum Profiles are best used in conjunction with the Market Profile. The Market Profile provides a key to the colors of the Spectrum Profile.

images/aspen00000305.gif

You can display Spectrum Profile by itself or, if you have subscribed to Market Profile, alongside a Market Profile.

To turn Spectrum Profile on, follow these steps:

1. Display the Price/Volume menu.

2. Select On in the Volume selection box.

images/aspen00090000.gif Move the cursor to the On selection and press b.

images/aspen00090000.gif Position the mouse pointer on top of the On selection and click the left mouse key.
